Bilstein 6100 60mm 0-2.6" Set - 2021-2023 Ford Bronco 4DR

Bilstein 6100 60mm 0-2.6" Set - 2021-2023 Ford Bronco 4DR

$455.00

Original: $1,300.00

-65%
Bilstein 6100 60mm 0-2.6" Set - 2021-2023 Ford Bronco 4DR

$1,300.00

$455.00

The Story

The Bilstein 6100 is the aggressive offroad upgrade the new 2021+ Bronco is craving. The larger 60mm piston has 25% more damping surface area than the Bilstein 5100 and the HOSS ESCV shocks. Through the height adjustment of the 6100 shocks, utilizing the factory coil springs, you can achieve additional clearance for larger tires, and obstacles offroad. A thicker piston gives more support overall both on and offroad, soaking up harder obstacles at greater speeds.

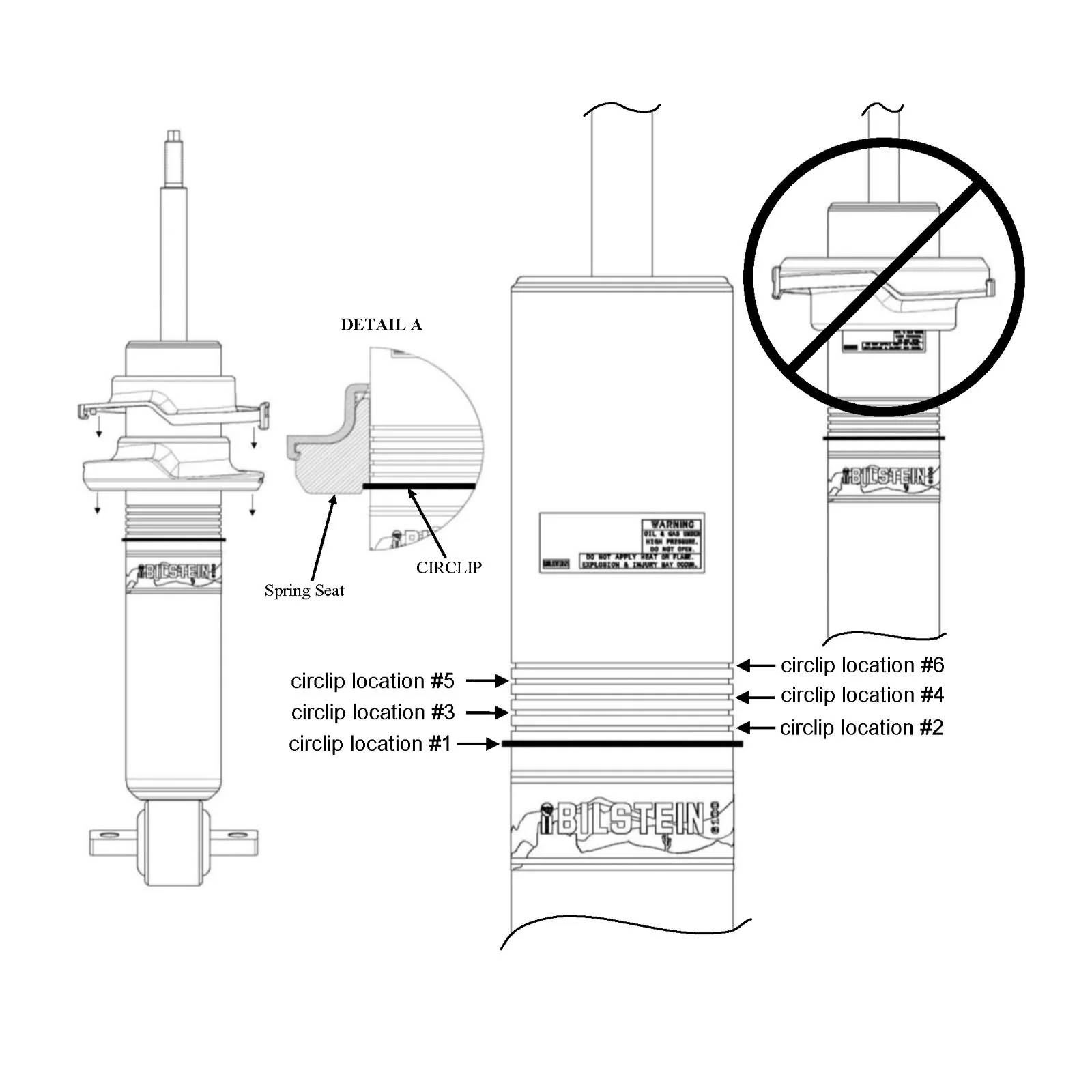

Read the height chart carefully, not all models see the same front and rear lift height gain. The front height gain on the Bronco will be greater than the rear, to keep a level stance.

Front - 24-318594

Collapsed Length (in)

16.62

Extended Length (in)

22.80

Travel Length (in)

6.18

Finish

Zinc Plated

Body Diameter

60mm

Spring Seat

E4-FT2-Z053A06

Spring Seat Included

Yes



Rear - 24-318600

Collapsed Length (in)

17.11

Extended Length (in)

25.56

Travel Length (in)

8.45

Finish

Zinc Plated

Body Diameter

60mm

Spring Seat

E4-FT2-Z053A06

Spring Seat Included

Yes
Bilstein 6100 60mm 0-2.6" Set - 2021-2023 Ford Bronco 4DR - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Bilstein 6100 60mm 0-2.6" Set - 2021-2023 Ford Bronco 4DR - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The Bilstein 6100 is the aggressive offroad upgrade the new 2021+ Bronco is craving. The larger 60mm piston has 25% more damping surface area than the Bilstein 5100 and the HOSS ESCV shocks. Through the height adjustment of the 6100 shocks, utilizing the factory coil springs, you can achieve additional clearance for larger tires, and obstacles offroad. A thicker piston gives more support overall both on and offroad, soaking up harder obstacles at greater speeds.

Read the height chart carefully, not all models see the same front and rear lift height gain. The front height gain on the Bronco will be greater than the rear, to keep a level stance.

Front - 24-318594

Collapsed Length (in)

16.62

Extended Length (in)

22.80

Travel Length (in)

6.18

Finish

Zinc Plated

Body Diameter

60mm

Spring Seat

E4-FT2-Z053A06

Spring Seat Included

Yes



Rear - 24-318600

Collapsed Length (in)

17.11

Extended Length (in)

25.56

Travel Length (in)

8.45

Finish

Zinc Plated

Body Diameter

60mm

Spring Seat

E4-FT2-Z053A06

Spring Seat Included

Yes
