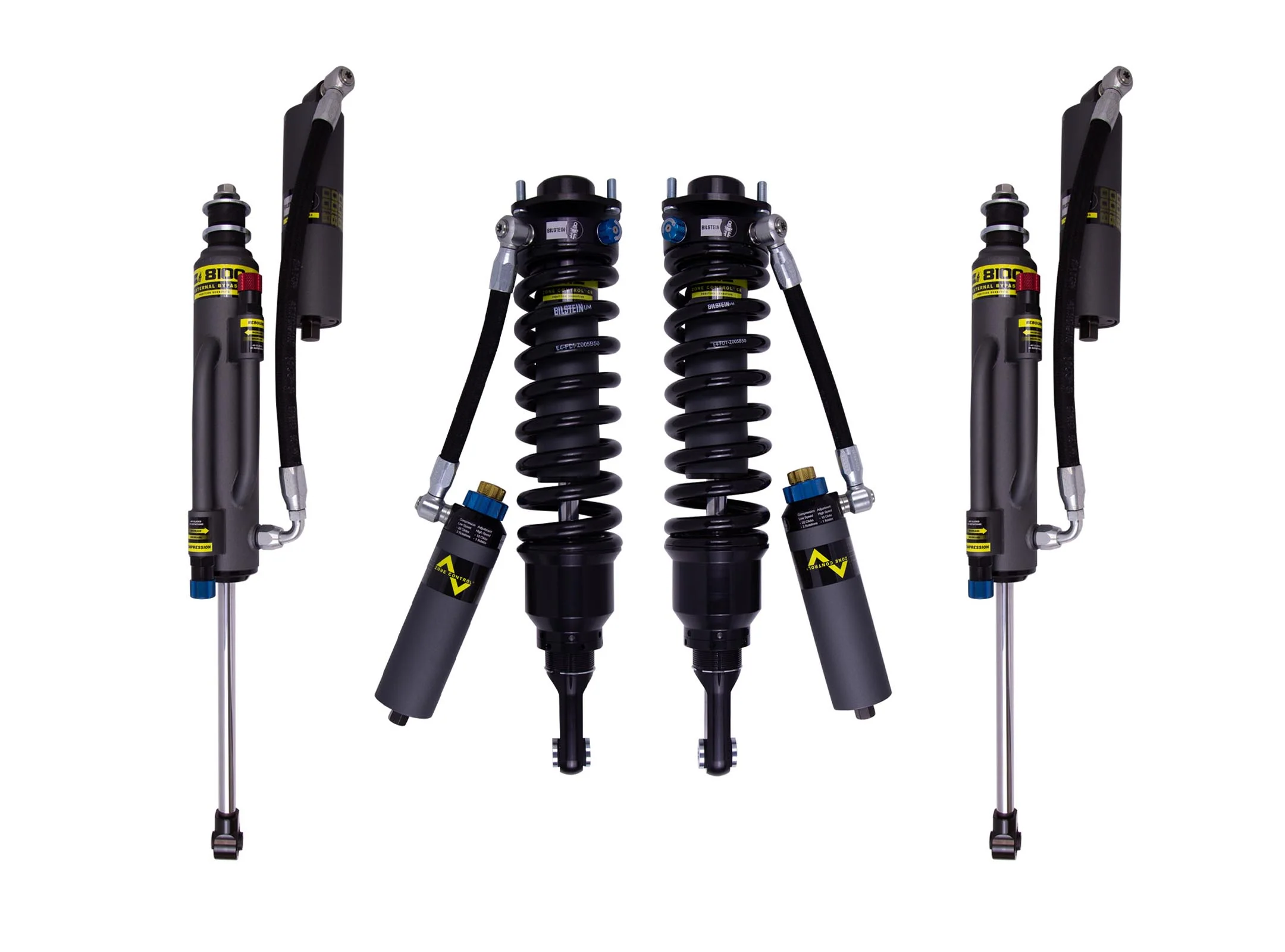

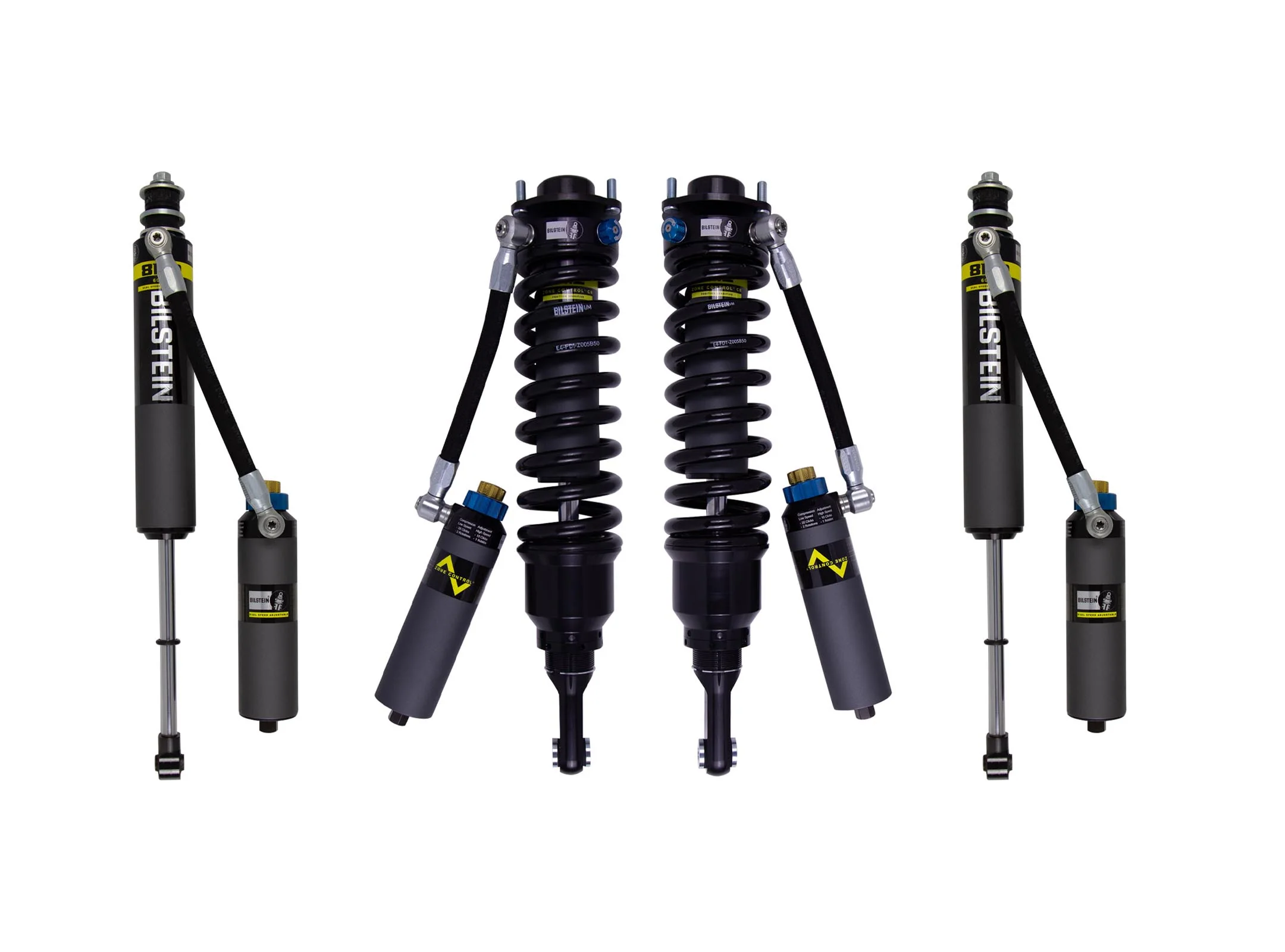

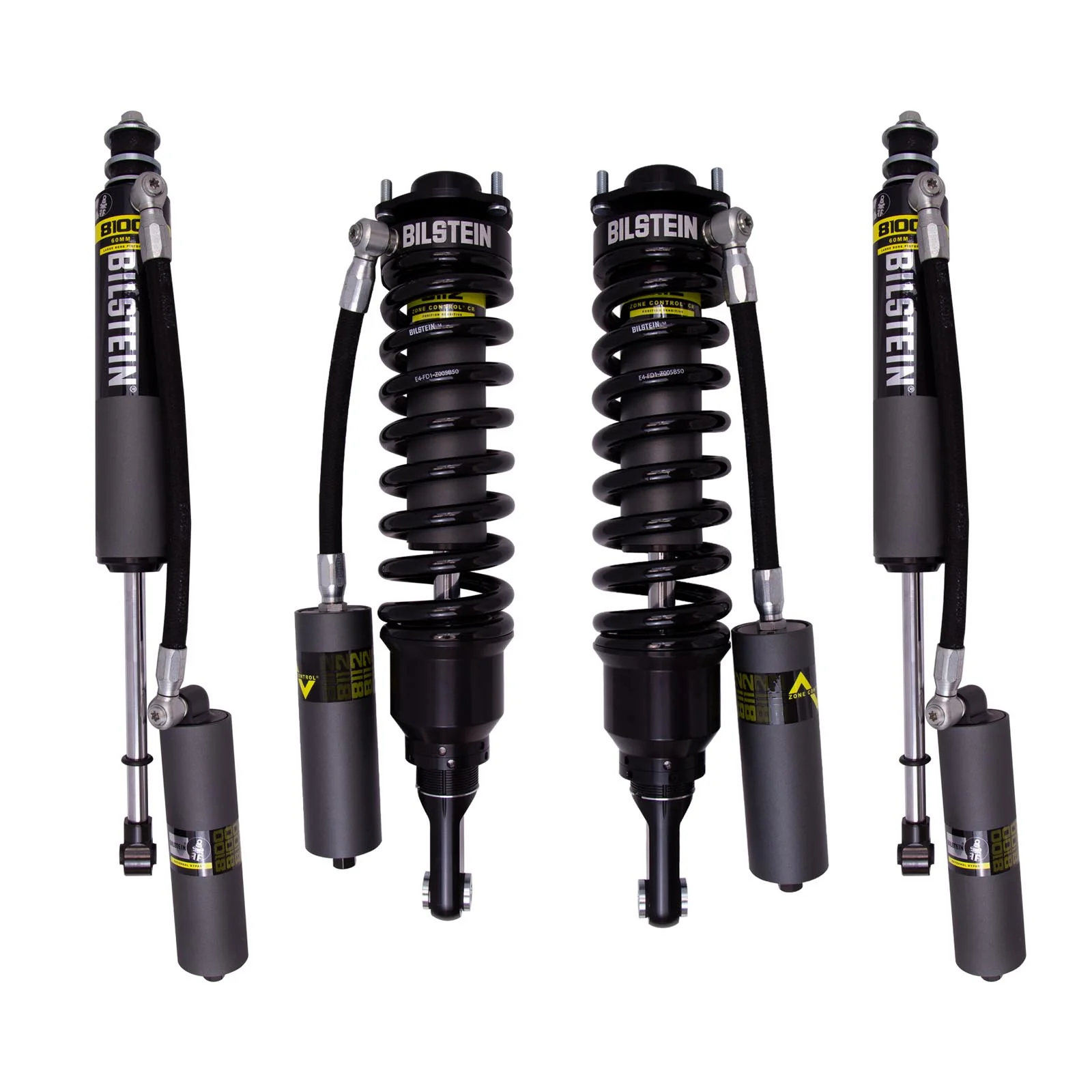

2 Coilovers & 2 Rear Shocks
A full set of front strut & spring assemblies with the matched rear pair of shocks.
Select Front Coilovers
Select Rear Shocks
From $3,424.00

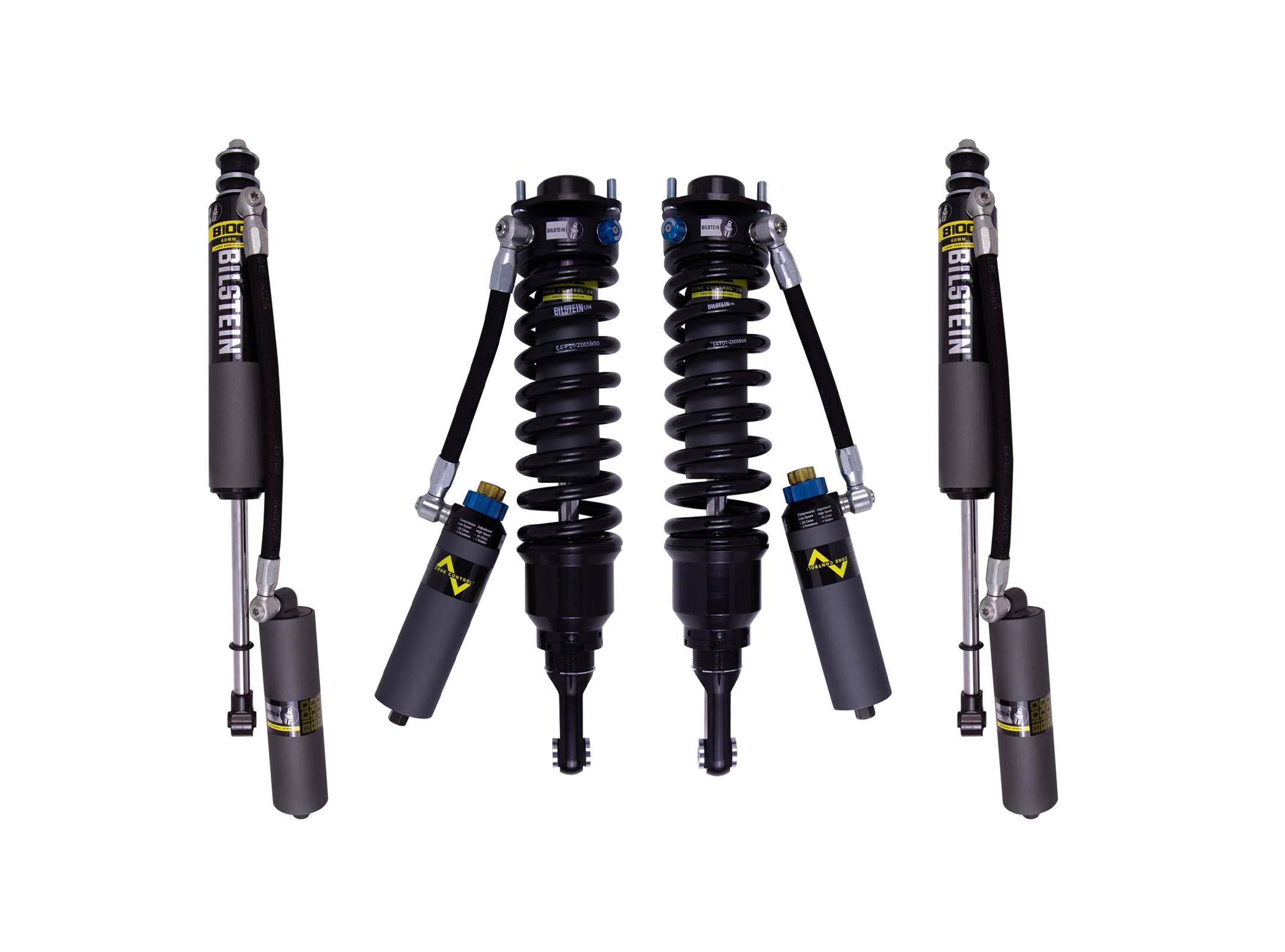

Bilstein 8112 & 8100 Lift System - 2005-2023 Toyota Tacoma—
$3,424.00
The Story
Part Numbers & Details
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure.Lifts your vehicle 0.4-2.2" in the front
Springs will lift the vehicle 0.4-2.2" in the front and up to 1.5" in the rearImportant Fitment Note
Fits 6 Lug vehicles ONLY.Fits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles.Front lift height allowance varies slightly based on Year/Drivetype

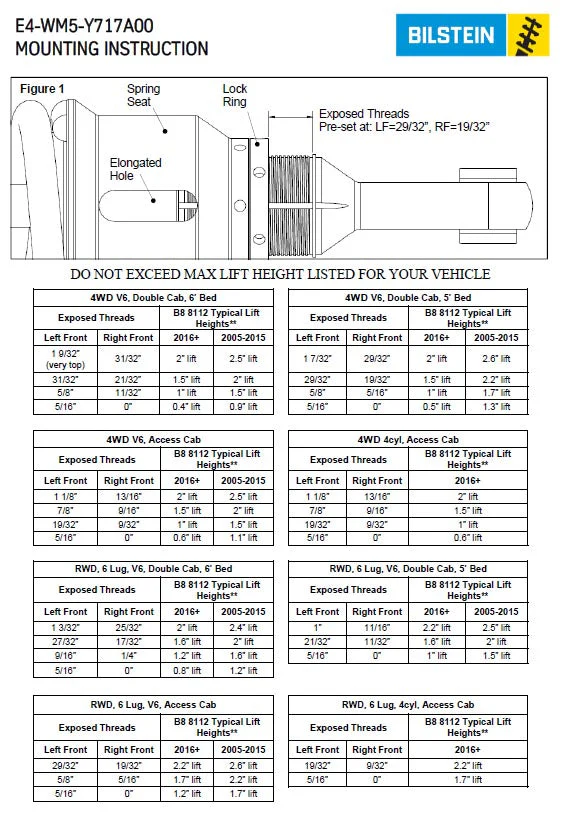

2005-2015 lift height allowance: 0.6-2.6". RWD Lift Height: 0.4"-2.2".Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.ZoneControl CR

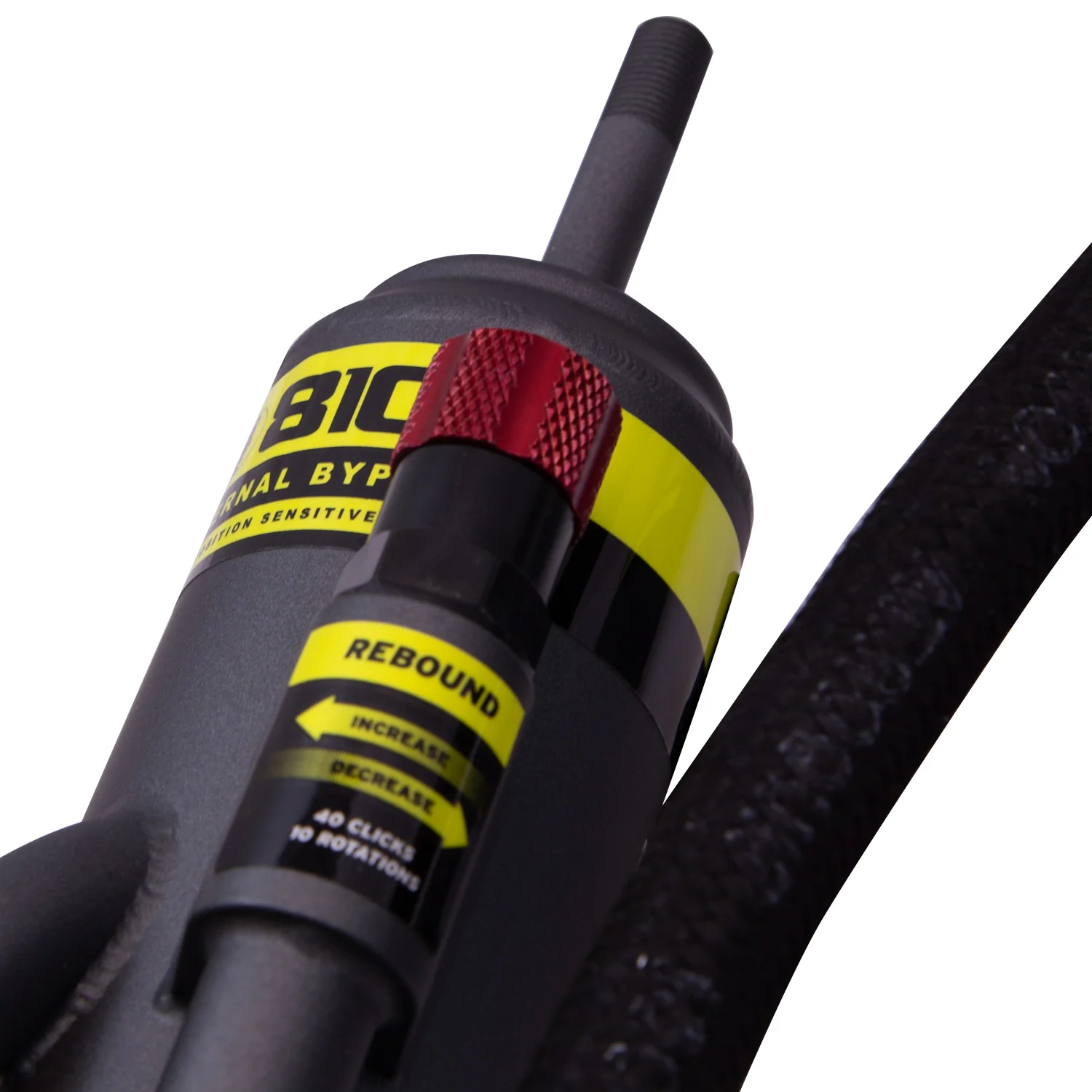

Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.Bilstein twin-tube technology
Twin-tube shocks utilize double-walled technology, where the piston divides the interior oil chamber into two working chambers. Under load, the piston pushes the oil down through the inner working chamber and up into the outer chamber. During rebound, the oil flows back through the piston valve to create a damping effect.Compression (C)

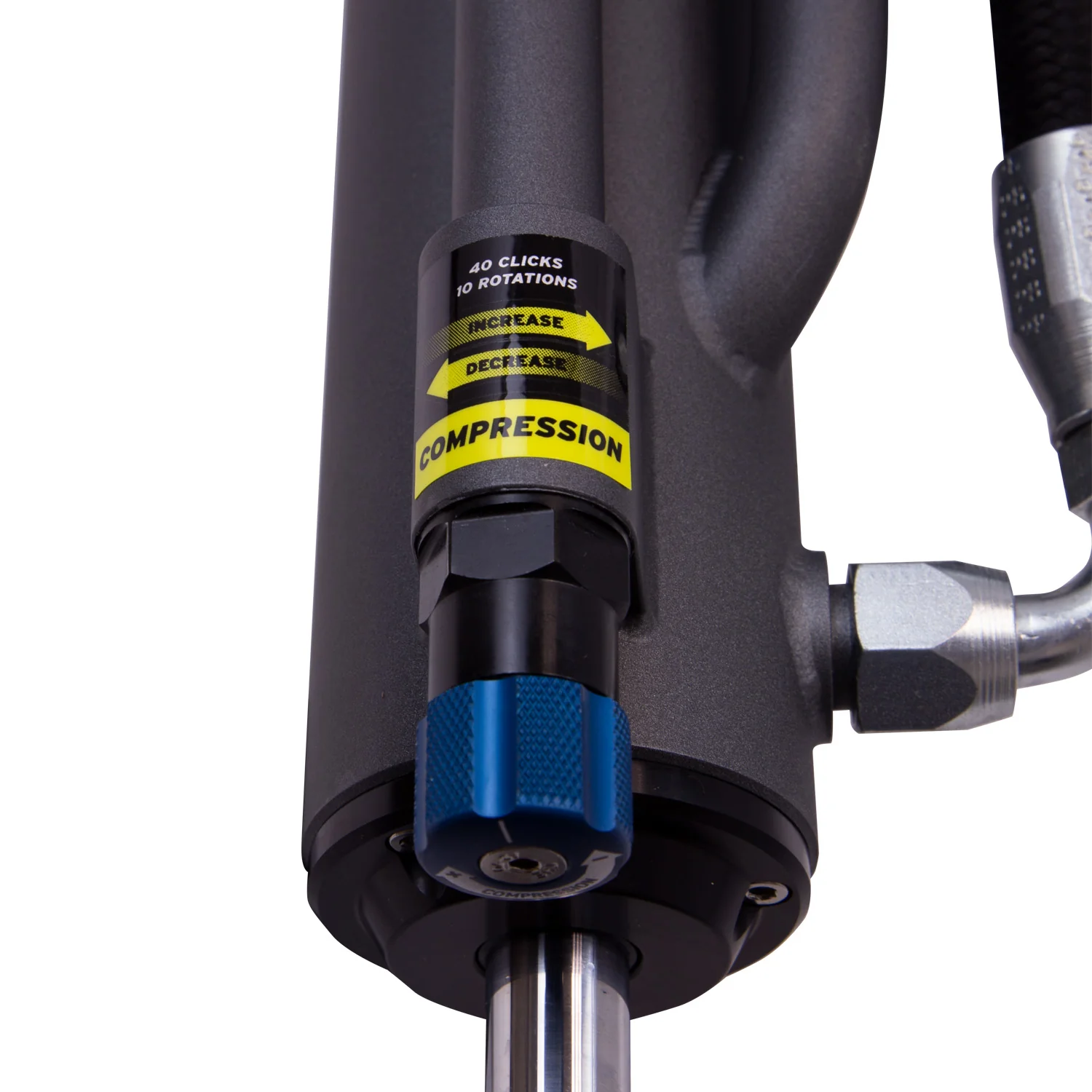

Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.Bilstein Gas-Pressure Technology
Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s Bilstein found the solution to this problem by developing gas-pressure technology.Specifications
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|

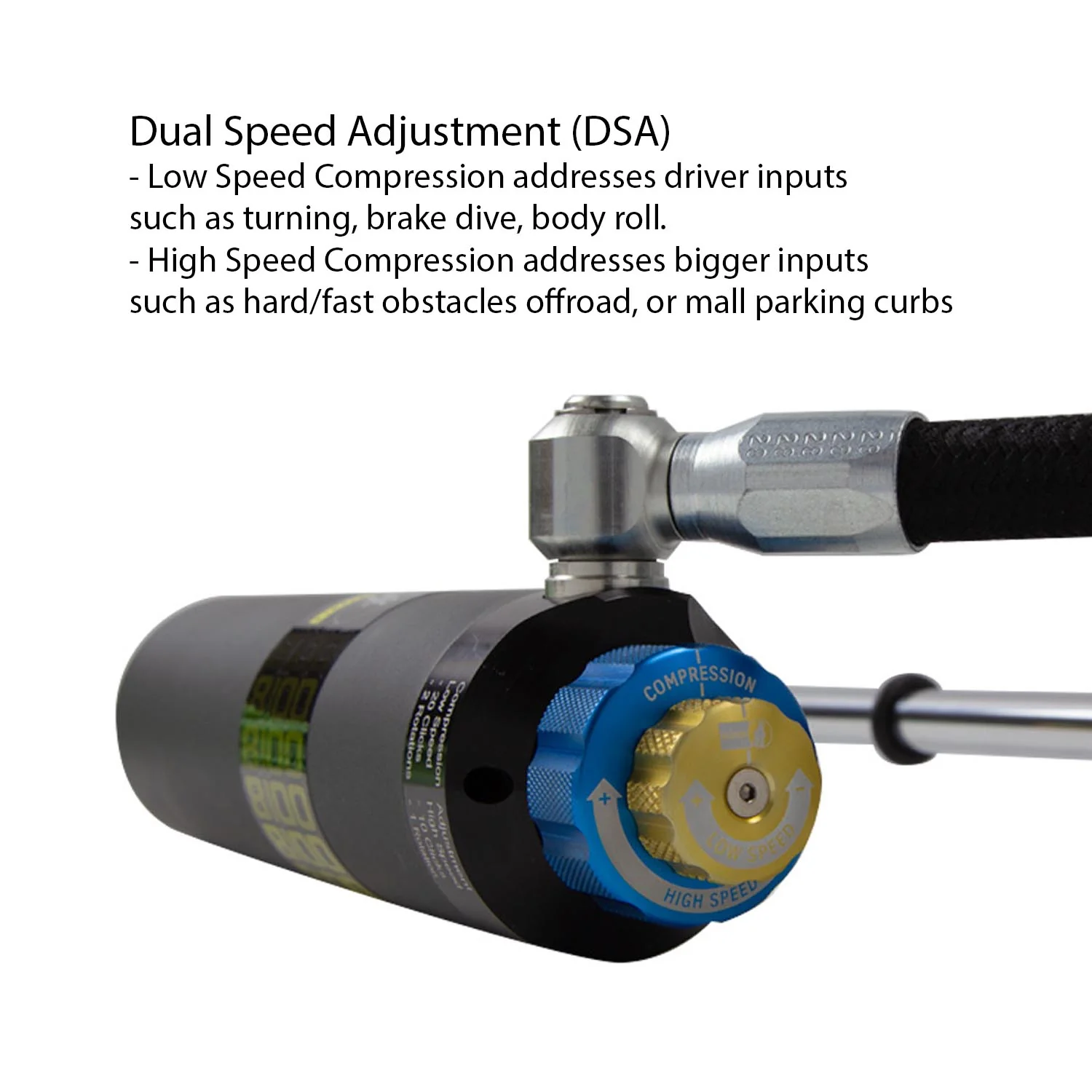

| 41-319574 | 0.4-2.2" Lift | Front Left | DSA+ Coilover | 1 |
| 41-319581 | 0.4-2.2" Lift | Front Right | DSA+ Coilover | 1 |
| 41-322673 | 0.4-2.2" Lift | Front Left | Coilover | 1 |
| 41-322697 | 0.4-2.2" Lift | Front Right | Coilover | 1 |
| 25-294064 |
0-2" Lift |
Rear |
Reservoir Shock |
2 |
| 25-294071 |
0-2" Lift |
Rear |
DSA Shock |
2 |
| 25-320459 | 0-2" Lift | Rear Right | Bypass Shock |
1 |
| 25-320442 | 0-2" Lift | Rear Left | Bypass Shock |
1 |
Product Details
Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Bilstein B8 8100 is a direct fit, large-bore solution for lifted trucks and SUVs. These shocks are constructed from aerospace quality billet components and utilize a 60MM internal diameter shock body for higher oil volume capacity that will control heat while traversing rough surfaces and long distances.
